Technical specifications
| Model | LPP 10 HD | |
|---|---|---|
| Service weight | kg (lb) | 60 (132) |
| Oil flow | l/min (gpm) | 20-40 (5.28-10.57) |
| Working pressure | bar (psi) | 100-160 (1,450-2,321) |
| Max back pressure | bar (psi) | 30 (435) |
| Lift capacity per stroke | mm (in) | 12-200 (0.4-7.8) |
| Pulling force | kg (lb) | 6.000 (13,228) |
| Full pulling force | kg (lb) | 10.000 (22,046) |
| EHTMA class | C/D/E | |
| Part number | 1801 8100 03 |
Lever
| Post puller lever kit | ||
|---|---|---|
| Weight | kg (lb) | 10 (22.05) |
| Part number | 3371 8101 48 |

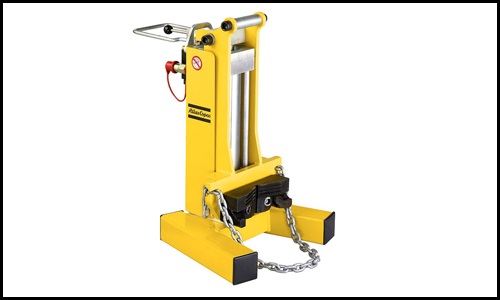

Wooden or steel posts
With hardened jaws and an automatic chain-tightening clamp, this post puller is ideal for removing all kinds of wooden or steel posts including IPE, HPE; UPE profiles and round/square steel tubes with diameters of up to 200 mm (8 in).
Got power
This post puller develops six tons of hydraulic pulling force. With the help of an optional separate hand lever, you boost the pulling force by an extra of four tons.
Compact and portable
Weighing in at just 60 kg (132 lb), it is the most compact and portable pulling device on the market. It´s perfect for on-site road repairs that cannot be accessed by heavy vehicles or excavators with a ten ton lifting capacity.
