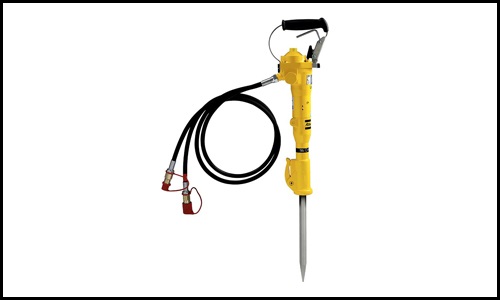

LH 11 the horizontal specialist
The LH 11 is a great choice if you work in renovation, demolition and for structural alteration jobs. It has a D-handle and a detachable front handle as option.
Technical specifications
| Model | LH 11 | |
|---|---|---|
| Weight | kg (lb) | 15.5 (34.2) |
| Length | mm (in) | 650 (25.6) |
| Oil flow | l/min (gal/min) | 20 (5) |
| Working pressure | bar (psi) | 80-100 (1,160-1,450) |
| Back pressure, max. | bar (psi) | 10 (145) |
| Impact rate | blows/min | 2,300 |
| Vibration level 3 axes (ISO 2897-10) | m/s² | 16.5 |
| Sound power level guaranteed (2000/14/EC) | Lw, dB(A) | 105 |
| Sound pressure level (ISO 11203) | Lp, r=1m | 92 |
| EHTMA class | C | |
| Shank size | Hex (in) | 22×82,5 (7/8×3 1/4) |
| Part number | 1801 1741 18 |
Easy gripping
The D handle is easy to grip. It also has a removable front handle as option.
Lift it up
The LH11 is light enough to lift and powerful enough to do a good job.
Work inside
Combined with an electric power pack it’s an
unbeatable indoor companion
